ISUZU12M Series Engine
Powering Reliable Diesel Generator Sets
Mampson12M Series Overview
-
High-Performance Design
A range of diesel engines specifically engineered for premium generator set applications.
-
800kW - 2500kW Power Range
Ideal for mission-critical scenarios including data centers, industrial facilities, and telecommunications infrastructure.
-
Superior Reliability & Efficiency
Features exceptional durability, low fuel consumption rates, and user-friendly maintenance procedures.
Baudouin 12M Series Diesel Engine
01
Robust cast iron cylinder block with grid structure and forged steel crankshaft for exceptional durability.
Rigorous testing ensures reliable performance in harsh environments.
Long service life with extended maintenance intervals (B10 life ≥ 30000 hours).

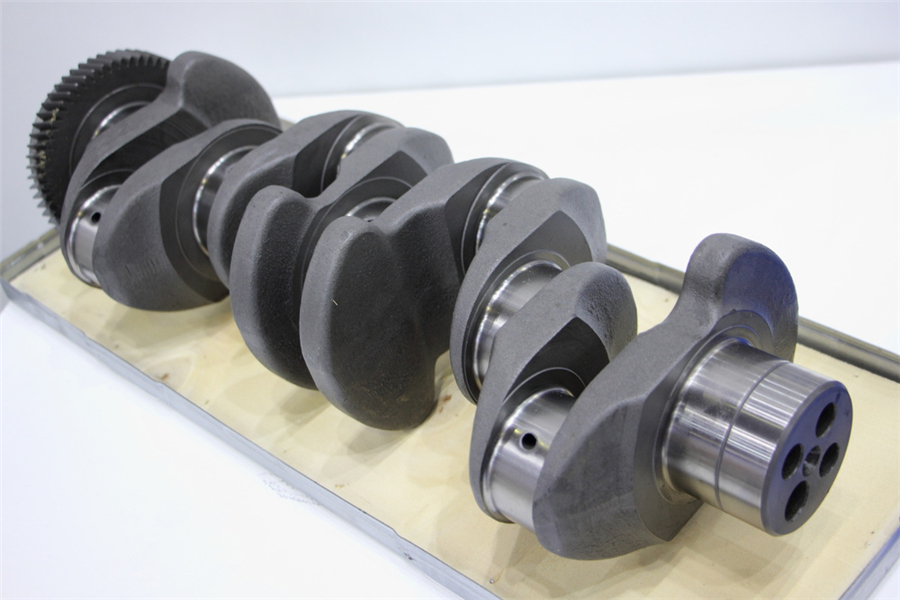

Forged Steel Crankshaft Detail
12M Series EngineExcellent Fuel Efficiency
-
Precise Fuel Delivery
Advanced high-pressure common rail fuel injection system ensures accurate fuel supply.
-
Optimized Combustion
Chamber design for complete combustion and ultra-low fuel consumption (≤ 200 g/kW·h).
-
Cost Efficiency
Significantly reduces daily operating costs through superior fuel economy.

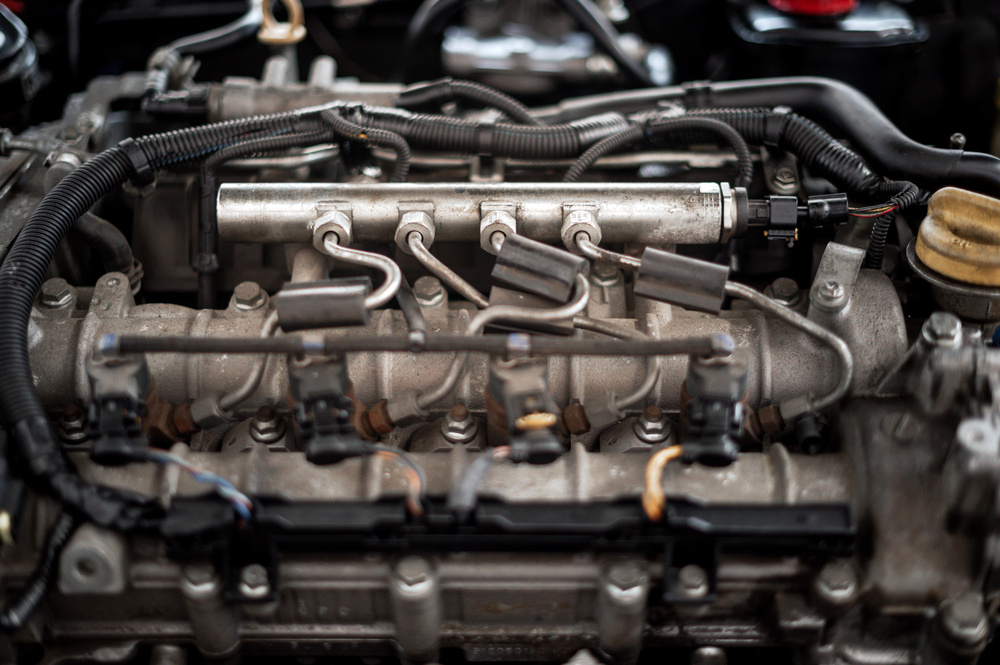

High-pressure Common Rail Fuel Injection System
01
Advanced electronic control unit (ECU) ensures rapid load acceptance (0-100% loading without stalling).
Enables seamless power transfer during grid failures, critical for data centers and telecom applications.
Proven performance in demanding applications requiring instant power.

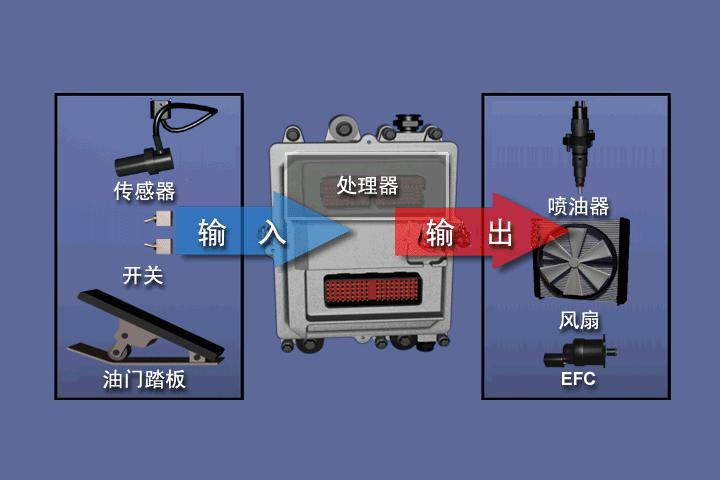

Engine Control System Schematic
Accessible maintenance points and service-friendly design for easy inspection and repair.
High degree of part commonality and modular design for simplified replacement.
Extended service intervals for oil and filter changes, reducing maintenance frequency.
6M Series EngineTechnical Specifications
| Model | Prime Power (kW) | Displacement (L) | Bore x Stroke (mm) | Fuel Consumption |
| 12M26G1100/5 | 1000 | 31.8 | 150 x 150 | ≤ 200g/kW·h |
| 12M33D1320E200 | 1200 | 39.2 | 150 x 185 | ≤ 210g/kW·h |
| 12M55 | 2000 | 65.6 | 150 x 215 | ≤ 198g/kW·h |
Power Range: 1000-2000 kWHigh Efficiency < 210 g/kW·h Heavy-Duty Industrial Design
Power Range: 800kW - 1200kW
Displacement: 31.8L
Features: Compact, lightweight, ideal for medium-to-large generator sets.
Application: Commercial buildings, telecommunications, and industrial facilities.
Baudouin 12M26 Engine
Power Range: 1000kW - 1450kW
Displacement: 39.2L
Features: High power density, robust design, suitable for large generator sets.
Application: Large commercial buildings, data centers, and industrial facilities.
BAUDOUIN 12M33 Engine
Power Range: 1600kW - 2500kW
Displacement: 65.6L
Features: High efficiency, low fuel consumption, ideal for large generator sets.
Application: Large commercial buildings, data centers, and industrial facilities.

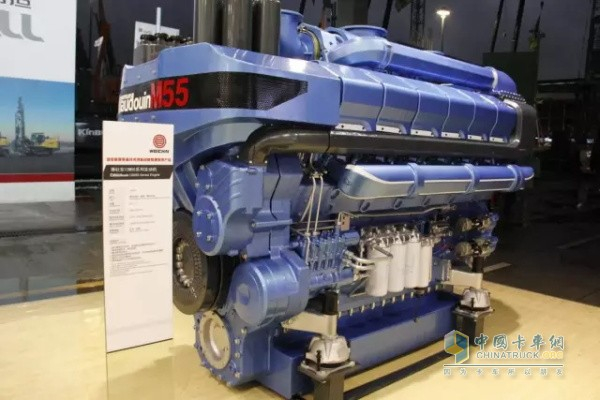

Baudouin 12M55 Engine Product View
